TT3-Thomas Tower

The TT3 Tower system serves as a lifting medium (up to 2 tons at 10 metres for each tower) for a variety of JTE truss (30.5 x 30.5 cm to heavy-duty), providing support for truss rigs when flying points are not strong enough or in the wrong place.

Call us for offer

Get your quote

Technical information


Download PDF

Basic info

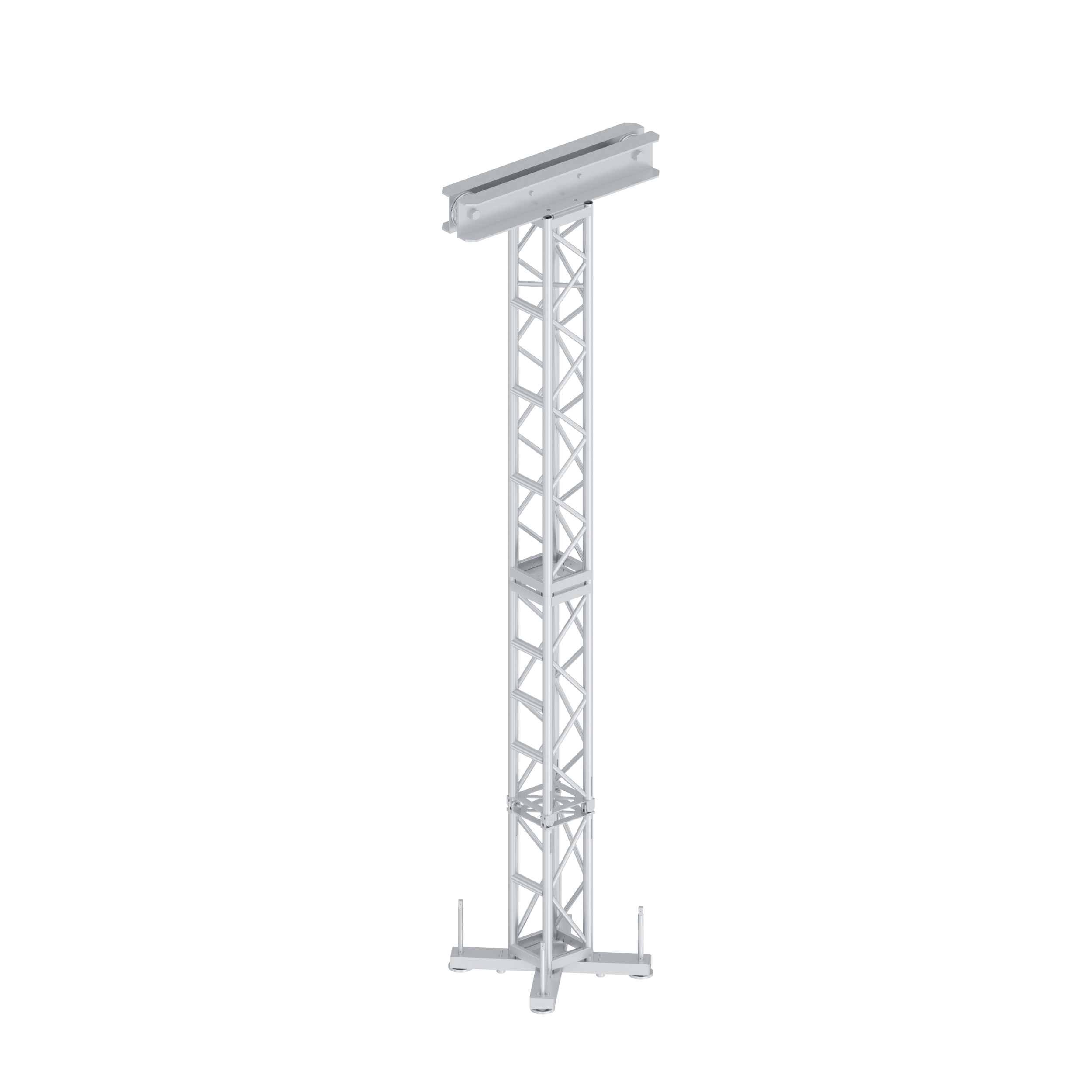

The Thomas TT3 Tower system serves as a lifting medium for a variety of JTE truss (30.5 x 30.5 cm to heavy-duty). It provides support for truss rigs when flying points are not strong enough or in the wrong place. Each tower can lift up to 2 tons (incl. self-weight of truss rig and motors) to a height of 10 metres. Truss rigs are raised and lowered via a double fall electric hoist within the truss (passing over roller beam at top of tower). The tower features a specially designed hinge section that allows horizontal assembly of towers at truss top level, then swung down and locked in a vertical operating position. Main chords are 50 x 4mm and diagonals 25 x 3mm. All components are made from 6082-T6 aluminium and feature bolted construction for the elimination of issues related to weld heat affected zones.
• 30.5cm square ground support tower
• Serves as lifting medium for a variety of JTE truss
  (30.5 x 30.5 cm to heavy-duty)
• Provides support for truss rigs where flying points are not
  strong enough or in the wrong place
• Each tower can lift up to 2 tons (incl. self weight of truss rig
  and motors) to a height of 10 metres
• Raises and lowers truss rig via an electric hoist rigged into the
  truss in double fall operation (passing over roller beam
  at top of tower)
• Specially designed hinge section allows horizontal assembly
  of towers at truss top level then swung down and locked in
  vertical operating position
• 50 x 4 mm main chords
• 25 x 3 mm diagonals
• Made from 6082-T6 aluminium
• Bolted construction eliminates issues related to weld heat
  affected zones
