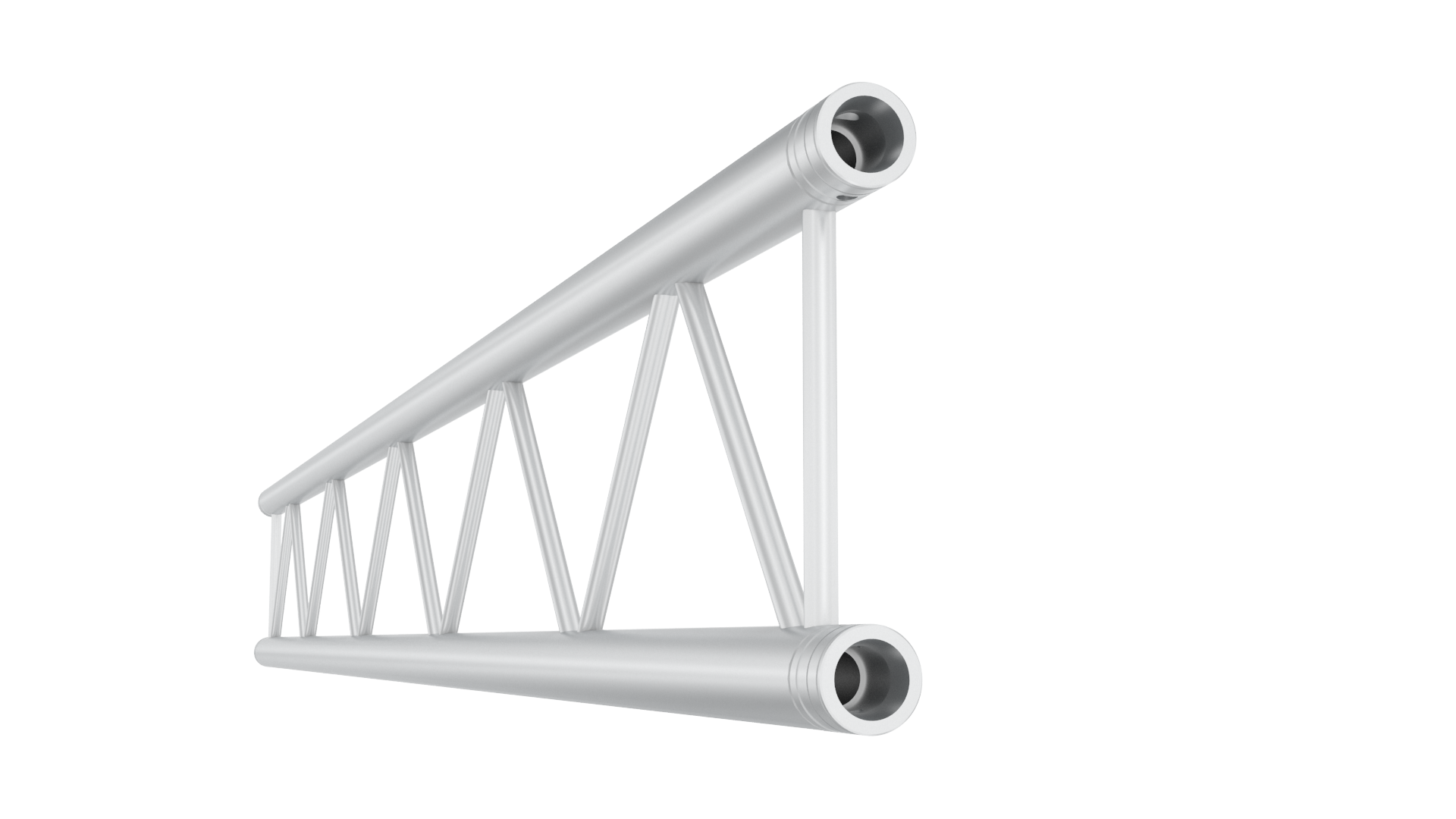

JT30H DUO TRUSS

The JT30H DUO is a heavy-duty conical connection truss made with high quality 48mm (1 7/8") aluminium tubes and widely used for PA Towers, Rigging Towers and Roofs.
Select format:
QUATROTRIODUO
Select load:

Call us for offer

Get your quote

Technical information





Download PDF

Basic info

The JT30H DUO is a heavy-duty truss made with high quality 48mm (1 7/8") aluminium tubes. It's a versatile truss system that's widely used for PA Towers, Rigging Towers and Roofs. It features conical connectors for quick, simple and secure assembly. An anti-twist end brace ensures extreme durability. Extended free-span (up to 20m / 65') and loading characteristics suit a wide variety of requirements. Compatible with JTCELL 200/400/ 600 series cell clamps and Xtruss accessories. Power coat colour finish available on request.
• High quality 48 mm (1 7/8’’) heavy-duty aluminium tubes
• Versatile system widely used for PA Towers,
   Rigging Towers and Roofs
• Conical connectors for quick, simple and secure assembly
• Anti-twist end brace for extreme durability
• Extended free-span (up to 20 m / 65’)and loading
   characteristics
• Compatible with JTCELL200 / 400 /  600 series cell
   clamps
• Compatible with Xtruss accessories
• Powder coat colour finish available on request
