TT4-Thomas Tower

The TT4 Tower is a 30.5cm square ground tower (up to 4 tons to a height of 12 metres for each tower) that serves as a lifting medium for a variety of JTE truss (from 52 x 52cm, heavy-duty, SuperTruss and Pre-rig truss to Roof Systems).

Call us for offer

Get your quote

Technical information


Download PDF

Basic info

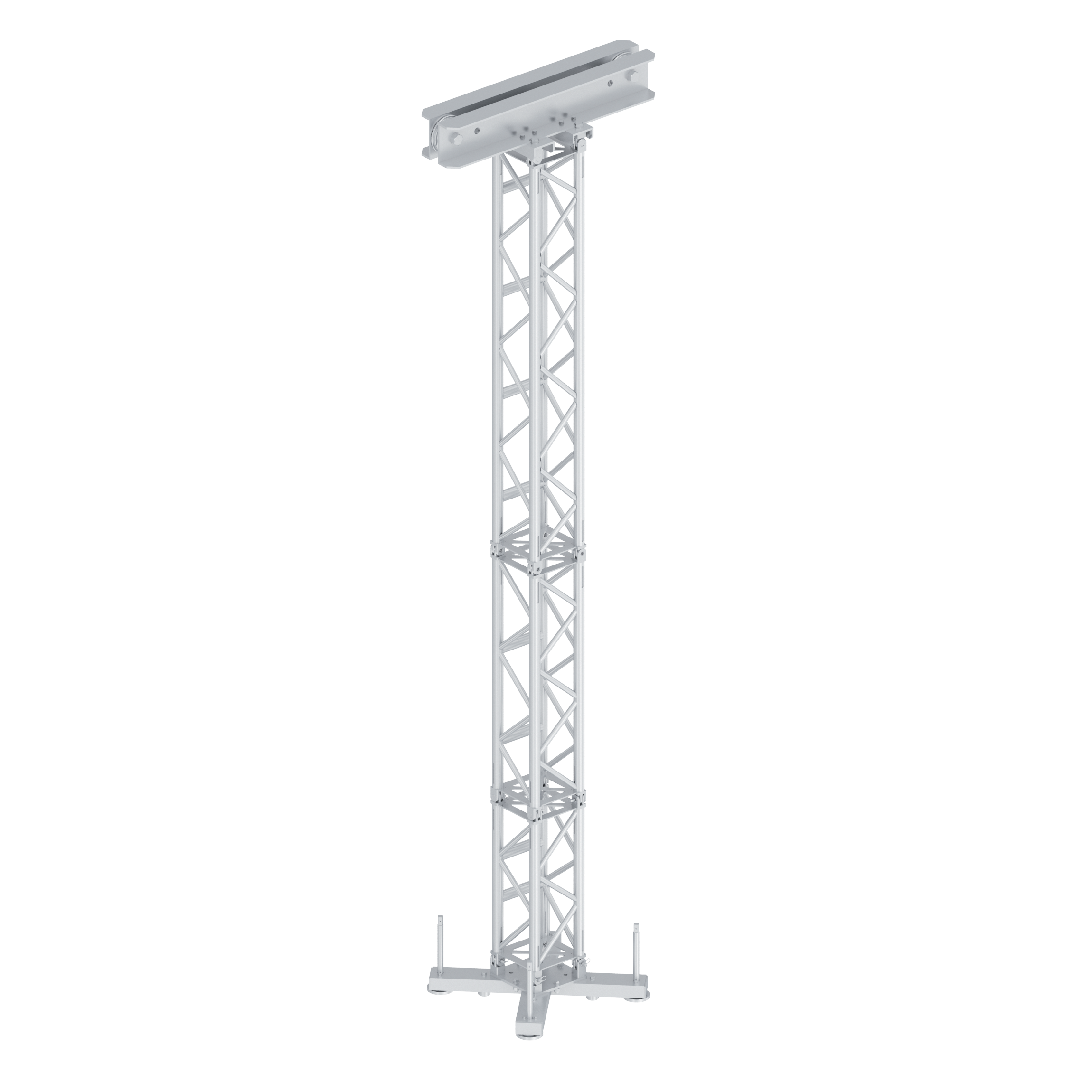

The TT4 Tower is a 30.5cm square ground tower that serves as a lifting medium for a variety of JTE truss (from 52 x 52cm, heavy-duty, SuperTruss and Pre-rig truss to Roof Systems). The tower features fork connections for fast assembly and higher load ratings than bolted towers. Provides support for truss rigs where flying points are not strong enough or in the wrong place. Each tower can lift up to 4 tons (incl. self-weight of truss rig and motors) to a height of 12 metres. Raises and lowers truss rigs via a double fall electric hoist in the truss (passing over the roller beam at the top of the tower and connected to the other side of the sleeve block). The truss sections are constructed with 50 x 4mm main chords and 25 x 3mm diagonals. Tower sections are pinned together to allow for 76cm increments in height, for a maximum height of 12 metres. Made from 6082-T6 aluminium.
• 30.5cm square ground support tower
• Serves as lifting medium for a variety of JTE truss
   (from 52 x 52 cm, heavy-duty, Supertruss and Pre-rig truss
to Roof Systems)
• Fork connections for fast assembly and higher load ratings
   than bolted towers
• Provides support for truss rigs where flying points are not
   strong enough or in the wrong place
• Each tower can lift up to 4 tons (incl. self weight of truss rig
   and motors) to a height of 12 metres
• Raises and lowers truss rig via an electric hoist rigged into
   the truss in double fall operation (passing over roller beam
   at top of tower and connected to other side of sleeve block)
• 50 x 4 mm main chords
• 25 x 3 mm diagonals
• Tower sections are pinned together to allow for 76 cm
   increments in height to a maximum height of 12 metres
• Made from 6082-T6 aluminium
